AICS-0013
Protein
lamin B1
Gene Symbol
LMNB1
Gene Name
lamin B1
Structure
nuclear envelope

Obtain AICS-0013

Obtain Donor Plasmid

AICS-0013

LMNB1 in WTC-mEGFP (mono-allelic tag)
Cell line media

Single image of a live hiPSC colony expressing LaminB1-mEGFP. Image is a maximum intensity projection of a spinning-disk confocal z-stack.

thumbnail image
thumbnail image
Video thumbnail
Video thumbnail
Video thumbnail
NCBI Isoforms:NM_005573
crRNA Target Site:GGGGTCGCAGTCGCCATGGC
Linker: SGLRSRAQAS
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

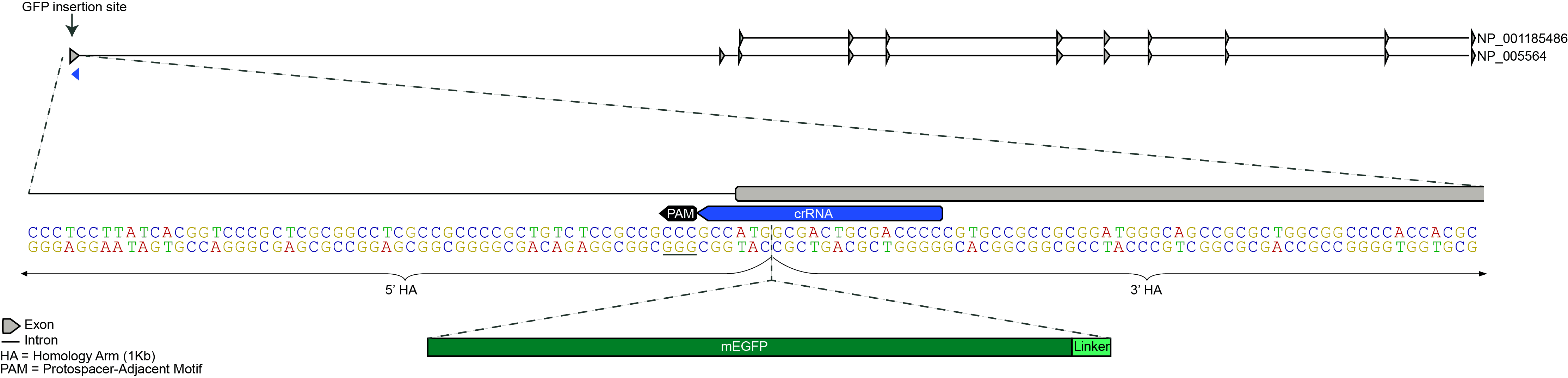

Top: LMNB1 locus showing 2 LMNB1 isoforms; Bottom: Zoom in on mEGFP insertion site at LMNB1 N-terminal exon
