AICS-0014
Protein
fibrillarin
Gene Symbol
FBL
Gene Name
fibrillarin
Structure
nucleolus (dense fibrillar component)

Obtain AICS-0014

Obtain Donor Plasmid

AICS-0014

FBL in WTC-mEGFP (mono-allelic tag)
Cell line media

Single image of a live hiPS cell colony expressing mEGFP tagged fibrillarin imaged on a spinning-disk confocal microscope. Image is a maximum intensity projection of a 3D z-stack.

thumbnail image
thumbnail image
Video thumbnail
Video thumbnail
Video thumbnail
NCBI Isoforms:NM_001436
crRNA Target Site:AACTGAAGTTCAGCGCTGTC
Linker: KPNSAVDGTAGPG
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

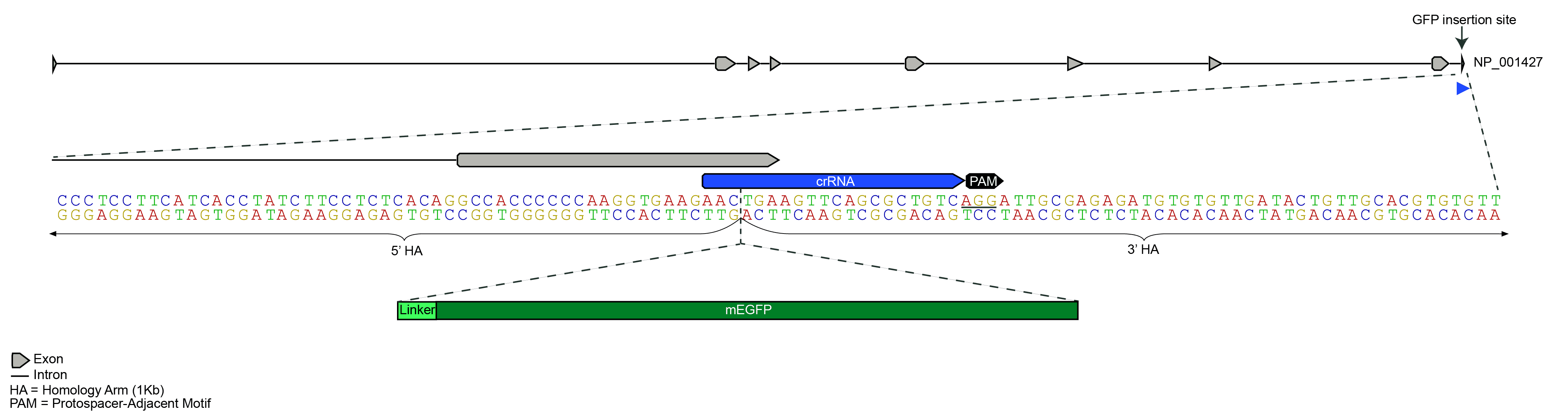

Top: FBL locus; Bottom: Zoom in on mEGFP insertion site at FBL C-terminal exon
