AICS-0031
Protein
alpha-tubulin
Gene Symbol
TUBA1B
Gene Name
tubulin-alpha 1b
Structure
microtubules

Obtain AICS-0031

Obtain Donor Plasmid

AICS-0031

TUBA1B in WTC-mTagRFP-T (mono-allelic tag)
Cell line media

Single image of a live hiPS cell colony expressing mTagRFP-T tagged alpha-tubulin imaged on a spinning-disk confocal microscope. Image is a single slice from a 3D z-stack in the top half of the cell

thumbnail image
thumbnail image
Video thumbnail
Video thumbnail
NCBI Isoforms:NM_006082
crRNA Target Site:GATGCACTCACGCTGCGGGA
Linker: GGSGGS
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

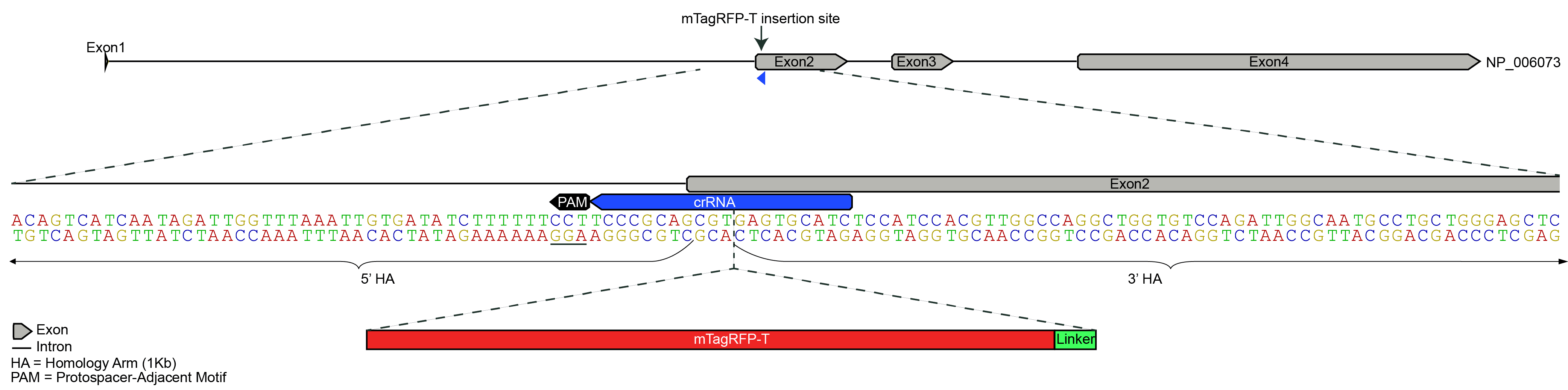

Top: TUBA1B locus; Bottom: Zoom in on mTagRFP-T insertion site at TUBA1B N-terminus
