AICS-0037
Protein
troponin I, slow skeletal muscle
Gene Symbol
TNNI1
Gene Name
troponin I1, slow skeletal type
Structure
sarcomeric thin filaments

Obtain AICS-0037

Obtain Donor Plasmid

AICS-0037

TNNI1 in WTC-mEGFP (mono-allelic tag)
Cell line media

Single mid-level plane of live hiPSC-derived cardiomyocytes expressing mEGFP-tagged troponin I, slow skeletal. Twelve days after the onset of differentiation, cells were plated on PEI and laminin coated glass and imaged 15 days later on a spinning-disk confocal microscope (27 days total after the onset of differentiation). Scale bar, 10µm.

thumbnail image
thumbnail image
Video thumbnail
Video thumbnail
NCBI Isoforms:N
crRNA Target Site:AGTCTCCGACCTCACAATAG
Linker: SGSG
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

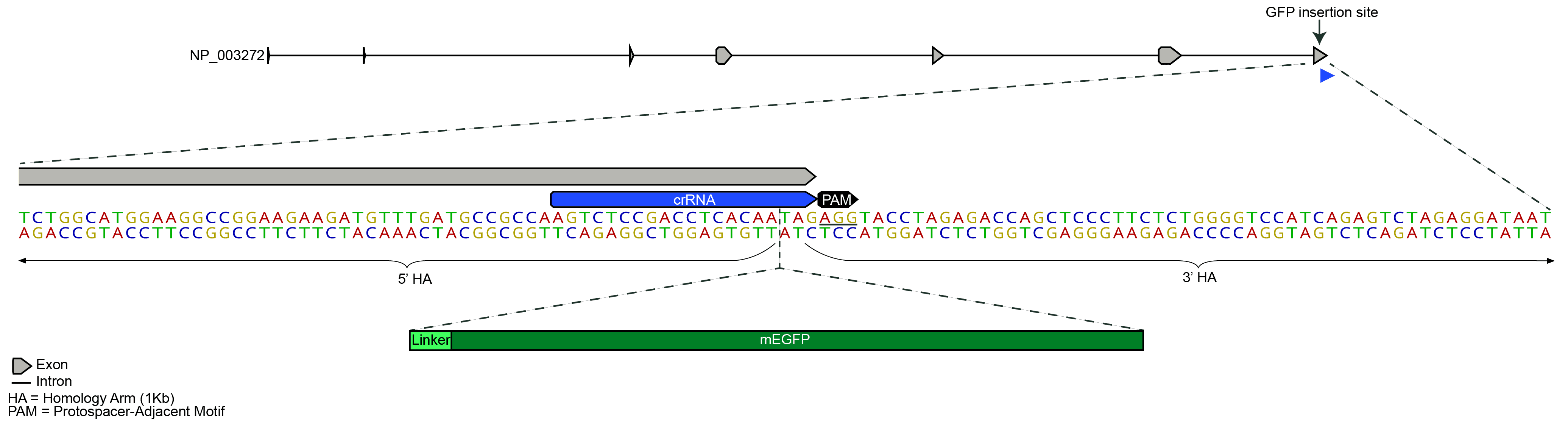

Top: TNNI1 locus; Bottom: Zoom in on mEGFP insertion site at TNNI1 C-terminus. For more information on tagging transcriptionally silent genes in hiPSCs see: Roberts et al. 2018. Scarless gene tagging of transcriptionally silent genes in hiPSCs to visualize cardiomyocyte sarcomeres in live cells. bioRxiv doi:10.1101/342881
