Allen Cell Collection
AICS-0048
Protein
titin
Gene Symbol
TTN
Gene Name
titin
Structure
sarcomeres (M-line tag)
Certificate of AnalysishPSCreg Certificate

Obtain AICS-0048

Obtain Donor Plasmid

AICS-0048

TTN in WTC-mEGFP (mono-allelic tag)
Cell line media

Single, mid-level plane of live hiPSC-derived cardiomyocytes expressing mEGFP-tagged titin protein. Twelve days after the onset of differentiation, cells were plated on PEI and laminin coated glass and imaged in 3D on a spinning disk confocal microscope 23 days later (35 days total after the onset of differentiation). Scale bar, 10 µm.

thumbnail image
thumbnail image
Video thumbnail
Video thumbnail
NCBI Isoforms:n
crRNA Target Site:ACATATTCGATCCATTTAAG
Linker: SGSG
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

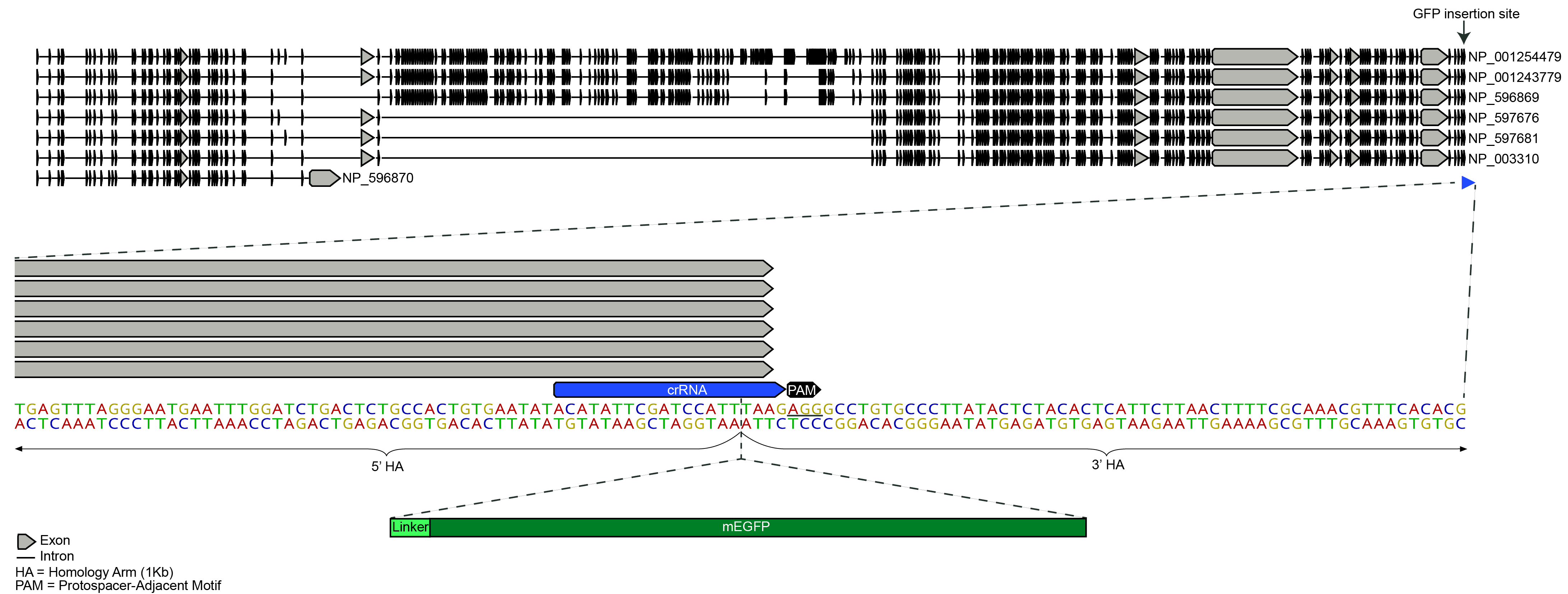

Top: TTN locus showing 7 TTN isoforms; Bottom: Zoom in on mEGFP insertion site at TTN C-terminus; For more information on tagging transcriptionally silent genes in hiPSCs see: Roberts et al. 2018. Scarless gene tagging of transcriptionally silent genes in hiPSCs to visualize cardiomyocyte sarcomeres in live cells. bioRxiv doi:10.1101/342881
