AICS-0005
Protein
paxillin
Gene Symbol
PXN
Gene Name
paxillin
Structure
matrix adhesions

Obtain AICS-0005

Obtain Donor Plasmid

AICS-0005

PXN in WTC-EGFP (mono-allelic tag)
Cell line media

Single image of a live hiPSC colony expressing paxillin-EGFP imaged on a spinning-disk confocal microscope. Left panel is a single slice of the z-tack near the bottom of the cell; right panel is this same projection overlaid onto one slice of the same z-stack in the transmitted light channel.

thumbnail image
thumbnail image
Video thumbnail
Video thumbnail
NCBI Isoforms:NM_0028593
crRNA Target Site:GCACCTAGCAGAAGAGCTTG
Linker: GTSGGS
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

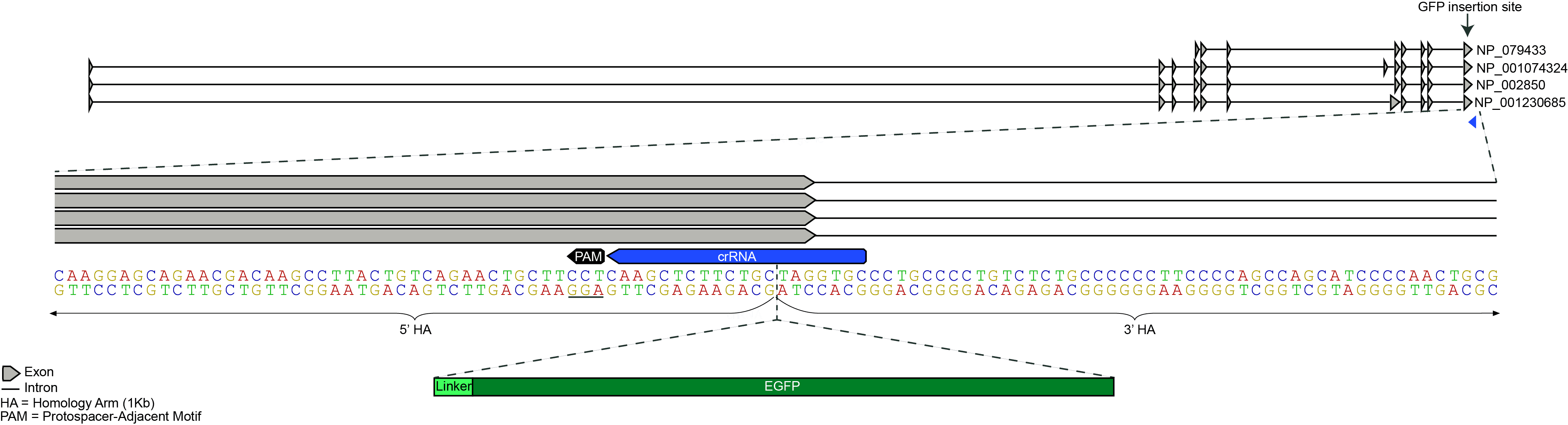

Top: PXN locus showing 4 PXN isoforms; Bottom: Zoom in on EGFP insertion site at PXN C-terminal exon
