AICS-0052
Protein
MLC-2a
Gene Symbol
MYL7
Gene Name
myosin light chain 7
Structure
sarcomeric thick filaments

Obtain AICS-0052

Obtain Donor Plasmid

AICS-0052

MYL7 in WTC-mEGFP (mono-allelic tag)
Cell line media

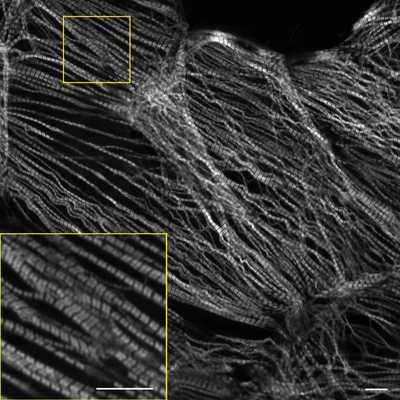

Single, mid-level plane of live hiPSC-derived cardiomyocytes expressing mEGFP-tagged MLC-2a protein. Twelve days after the onset of differentiation, cells were plated on PEI and laminin coated glass and imaged in 3D on a spinning disk confocal microscope 20 days later (32 days total after the onset of differentiation). Scale bar, 10 µm.

thumbnail image
thumbnail image
Video thumbnail
Video thumbnail
NCBI Isoforms:n
crRNA Target Site:GGAGACGAGAAAGAGGAATG
Linker: GSGSPGSGSG
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

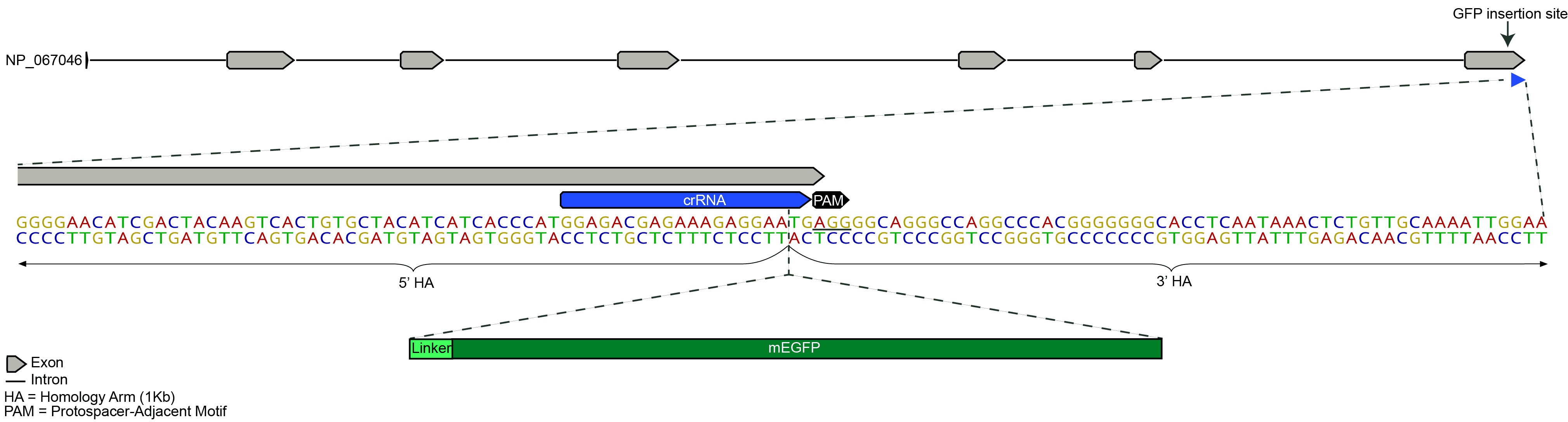

Top: MYL7 locus; Bottom: Zoom in on mEGFP insertion site at MYL7 C-terminus; For more information on tagging transcriptionally silent genes in hiPSCs see: Roberts et al. 2018. Scarless gene tagging of transcriptionally silent genes in hiPSCs to visualize cardiomyocyte sarcomeres in live cells. bioRxiv doi:10.1101/342881
