AICS-0057
Protein
nucleophosmin
Gene Symbol
NPM1
Gene Name
nucleophosmin 1
Structure
nucleolus (granular component)

Obtain AICS-0057

Obtain Donor Plasmid

AICS-0057

NPM1 in WTC-mEGFP (mono-allelic tag)
Cell line media

Single mid-level plane of live hiPS cell colony expressing mEGFP-tagged nucleophosmin. Right panel is the same image as the left but with contrast enhanced to visualize dimmer localization in mitotic cells. Images are maximum intensity projections through the volume of the cells. Cells were imaged in 3D on a spinning-disk confocal microscope. Scale bar, 5µm.

thumbnail image
thumbnail image
Video thumbnail
Video thumbnail
Video thumbnail
NCBI Isoforms:N
crRNA Target Site:TCCAGGCTATTCAAGATCTC
Linker: KPNSAVDGTAGPGSIAT
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

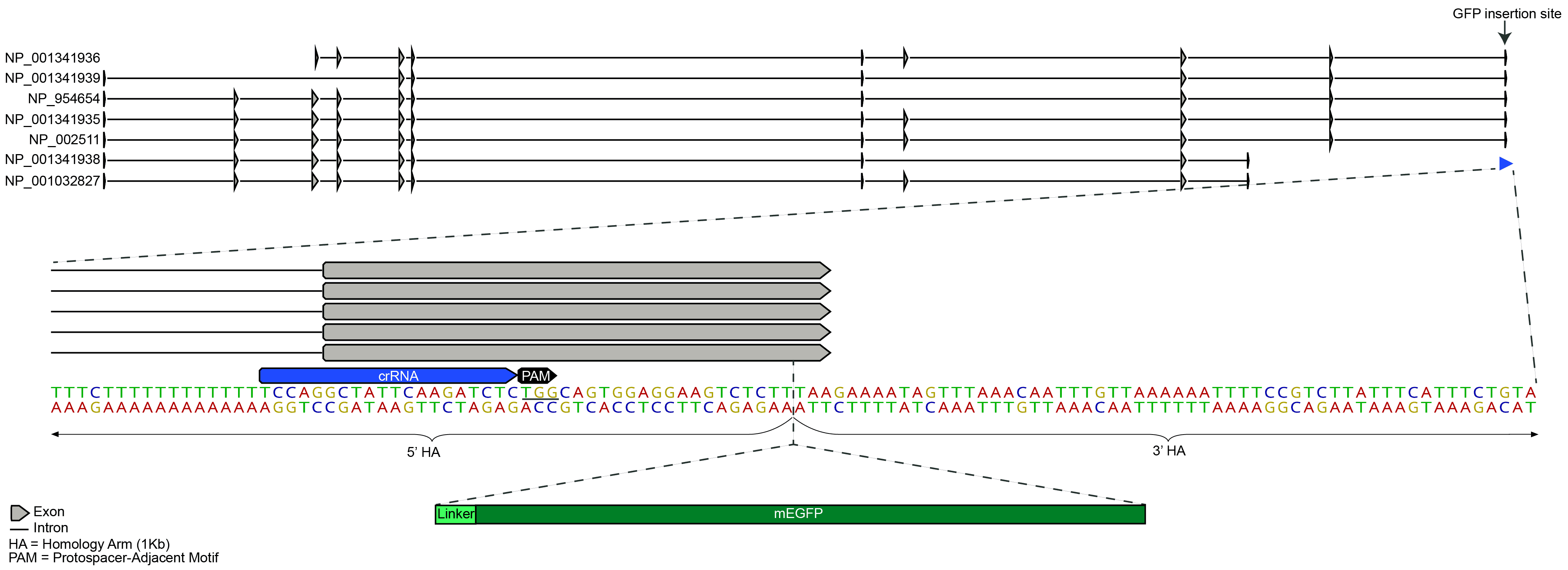

Top: NPM1 locus showing 7 NPM1 isoforms; Bottom: Zoom in on mEGFP insertion site at NPM1 C-terminal exon
