AICS-0061
Protein
histone H2B type 1-J
Gene Symbol
HIST1H2BJ
Gene Name
histone cluster 1 H2B family member j
Structure
histones

Obtain AICS-0061

Obtain Donor Plasmid

AICS-0061

HIST1H2BJ in WTC-mEGFP (mono-allelic tag)
Cell line media

Single, mid-level plane of cells in a live hiPS cell colony expressing mEGFP-tagged Histone H2B type 1-J protein. The cells in the imaged region highlight cell-cycle-dependent changes in localization. The large dim regions within nuclei likely represent nucleoli. Cells were imaged in 3D on a spinning-disk confocal microscope. Scale bar, 5 µm.

thumbnail image
thumbnail image
Video thumbnail
Video thumbnail
Video thumbnail
NCBI Isoforms:n
crRNA Target Site:ACTCACTGTTTACTTAGCGC
Linker: DPPVAT
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

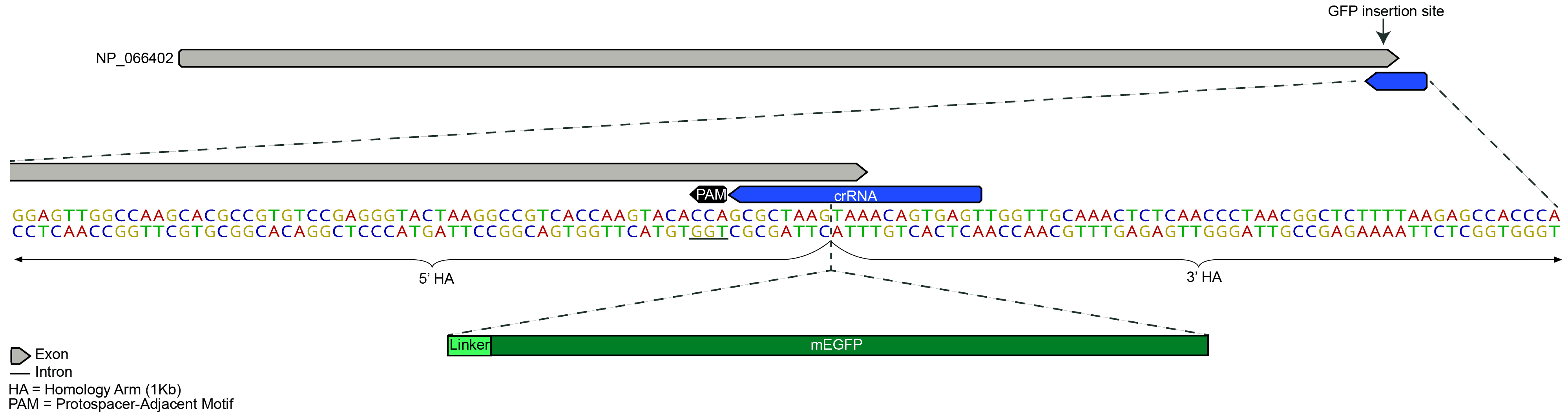

Top: HIST1H2BJ locus; Bottom: Zoom in on mEGFP insertion site at HIST1H2BJ C-terminus
