AICS-0068
Protein
SMC protein 1A
Gene Symbol
SMC1A
Gene Name
structural maintenance of chromosomes 1A
Structure
cohesins
Certificate of AnalysishPSCreg Certificate

Obtain AICS-0068

Obtain Donor Plasmid

AICS-0068

SMC1A in WTC-mEGFP (mono-allelic tag)
Cell line media

Single, mid-level plane of cells in a live hiPS cell colony expressing mEGFP-tagged SMC protein 1A. Cells were imaged in 3D on a spinning-disk confocal microscope. Scale bar, 5 µm.

thumbnail image
thumbnail image
Video thumbnail
Video thumbnail
Video thumbnail
NCBI Isoforms:n
crRNA Target Site:AAAATACTGCTACTGCTCAT
Linker: LSSSGPSGS
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

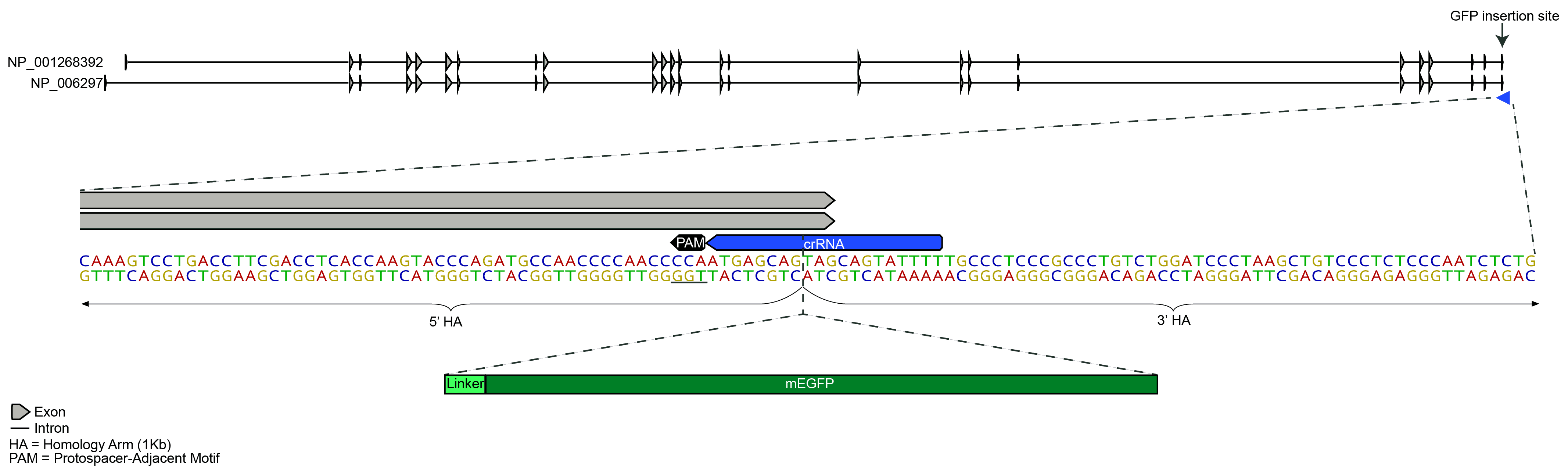

Top: SMC1A locus showing 2 SMC1A isoforms; Bottom: Zoom in on mEGFP insertion site at SMC1A C-terminal exon
