AICS-0074
Protein
transcription factor SOX-2
Gene Symbol
SOX2
Gene Name
SRY-box transcription factor 2
Structure
transcription factor

Obtain AICS-0074

Obtain Donor Plasmid

AICS-0074

SOX2 in WTC-mEGFP (mono-allelic tag)
Cell line media

Single mid-level plane of live hiPS cell colony expressing mEGFP-tagged nucleophosmin. Right panel is the same image as the left but with contrast enhanced to visualize dimmer localization in mitotic cells. Images are maximum intensity projections through the volume of the cells. Cells were imaged in 3D on a spinning-disk confocal microscope. Scale bar, 5µm.

thumbnail image
thumbnail image
Video thumbnail
Video thumbnail
Video thumbnail
NCBI Isoforms:n
crRNA Target Site:TGCCCCTCTCACACATGTGA
Linker: GGSG
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

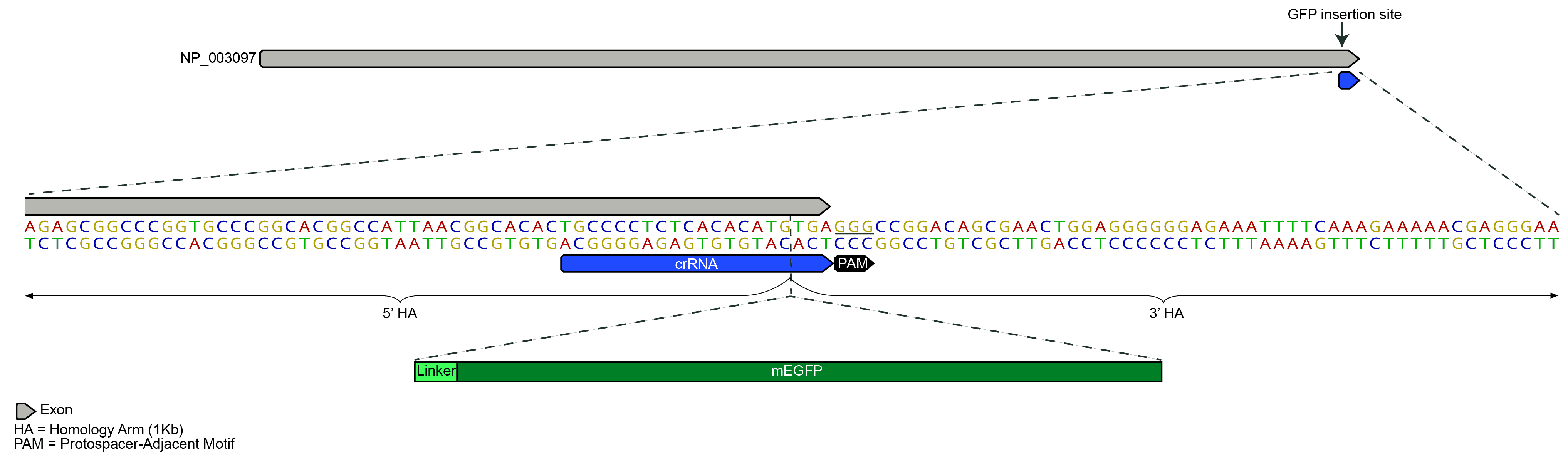

Top: SOX2 locus; Bottom: Zoom in on mEGFP insertion site at SOX2 C-terminus
