AICS-0084
Protein
fibrillarinnucleophosmin
Gene Symbol
FBLNPM1
Gene Name
fibrillarinnucleophosmin 1
Structure
nucleolus (dense fibrillar component)nucleolus (granular component)

Obtain AICS-0084

Obtain Donor Plasmid

AICS-0084

FBL in WTC-mEGFP (mono-allelic tag)
Cell line media

Single mid-level plane of live hiPS cell colony expressing mEGFP-tagged nucleophosmin. Right panel is the same image as the left but with contrast enhanced to visualize dimmer localization in mitotic cells. Images are maximum intensity projections through the volume of the cells. Cells were imaged in 3D on a spinning-disk confocal microscope. Scale bar, 5µm.

thumbnail image
thumbnail image
Video thumbnail
Video thumbnail
Video thumbnail
NCBI Isoforms:n
crRNA Target Site:AACTGAAGTTCAGCGCTGTC / TCCAGGCTATTCAAGATCTC
Linker: KPNSAVDGTAGPGSIAT / KPNSAVDGTAGPGSIAT
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

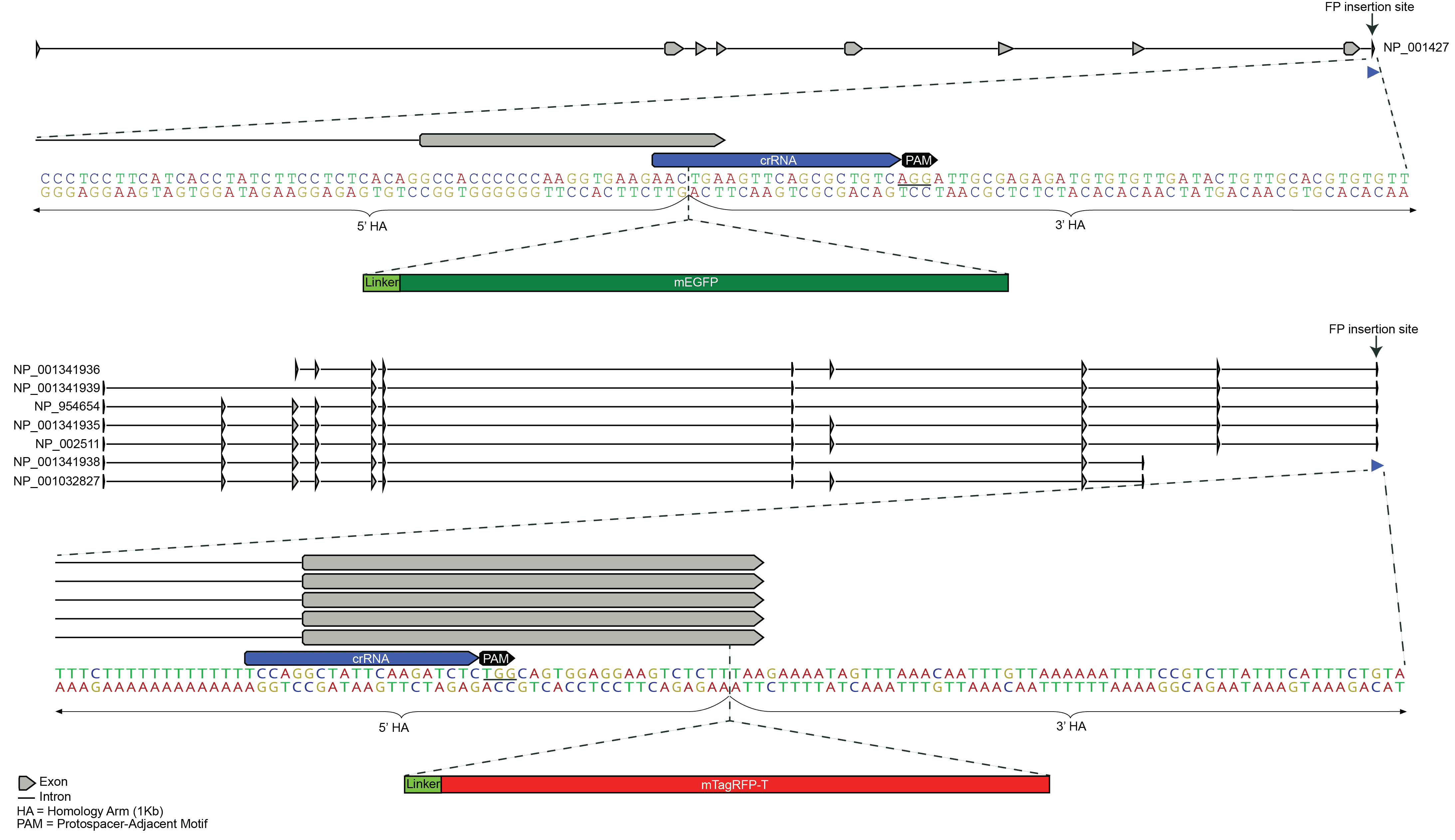

Top: FBL locus with zoom in on mEGFP insertion site at FBL C-terminal exon. Bottom: NPM1 locus showing 7 NPM1 isoforms with zoom in on mTagRFP-T insertion site at NPM1 C-terminal exon
