Allen Institute Logo|
Allen Cell Collection
AICS-0094
Protein
SON
Gene Symbol
SON
Gene Name
SON DNA and RNA binding protein
Structure
nuclear speckles

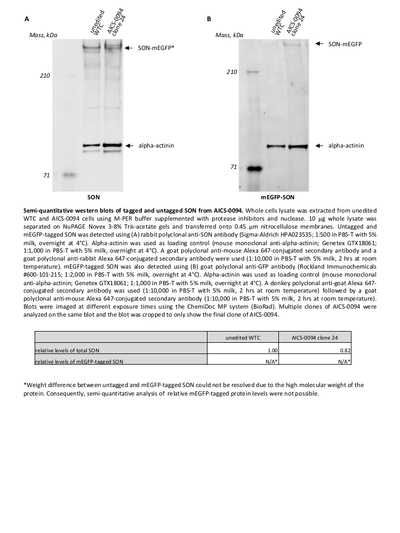

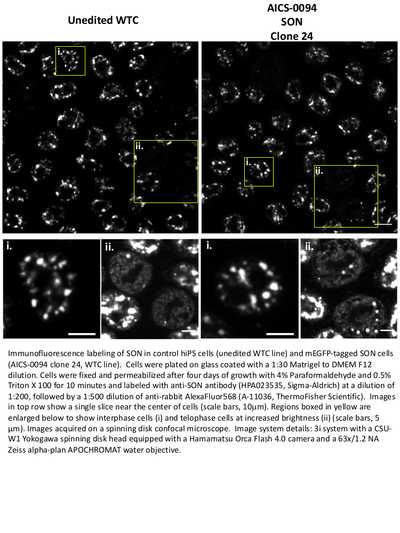

Certificate of AnalysishPSCreg Certificate

Obtain AICS-0094

Obtain Donor Plasmid

AICS-0094

SON in WTC-mEGFP (mono-allelic tag)

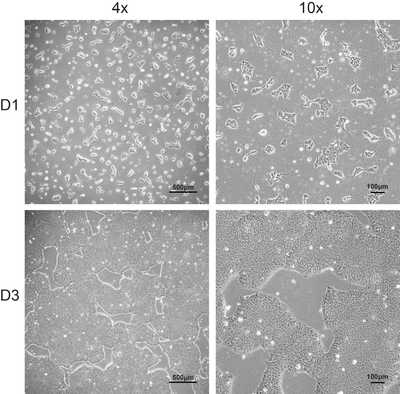

Cell line media

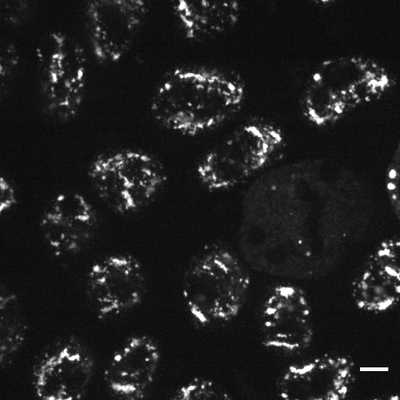

Single, mid-level plane of cells in a live hiPS cell colony expressing mEGFP-tagged SON. Cells were imaged in 3Don a spinning-disk confocal microscope. Scale bar, 5μm.

thumbnail image
thumbnail image

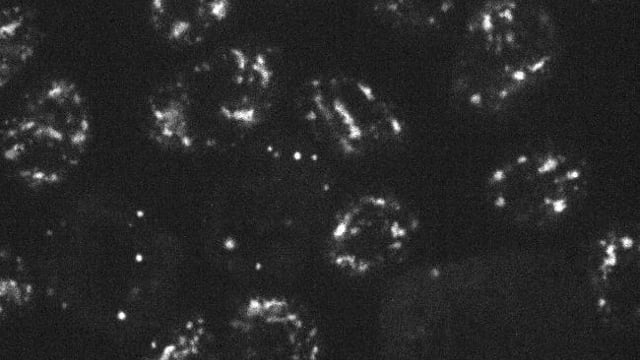

Video thumbnail

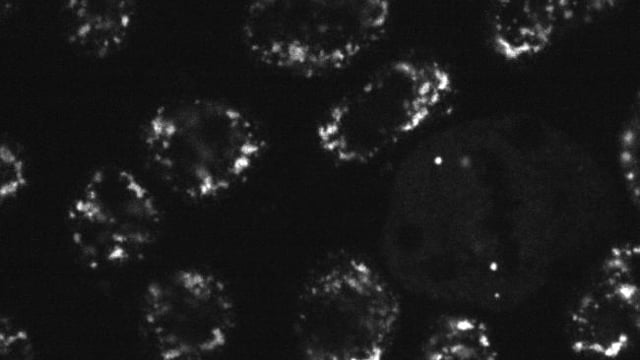

Video thumbnail

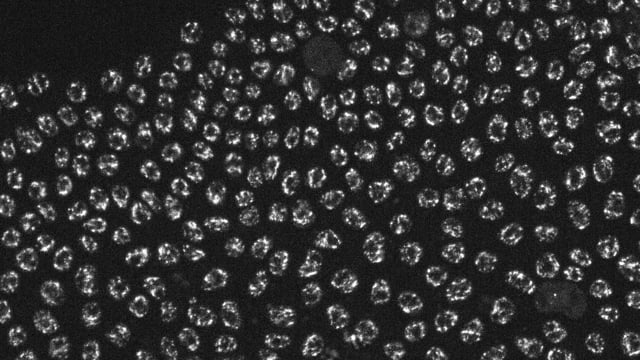

Video thumbnail
NCBI Isoforms:n
crRNA Target Site:CTGCTCGATGTTGGTCGCCA
Linker: SGLRS
Cas9:Wildtype spCas9
mEGFP Insert
mEGFP Insert

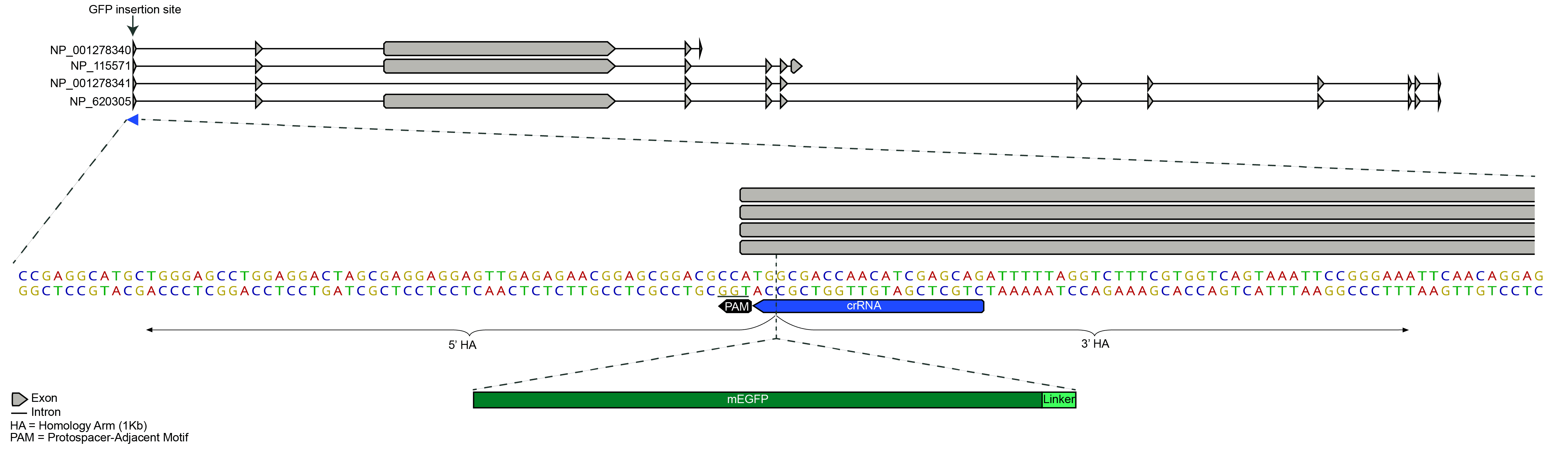

Top: SON locus showing 4 SON isoforms; Bottom: Zoom in on mEGFP insertion site at SON N-terminal exon
